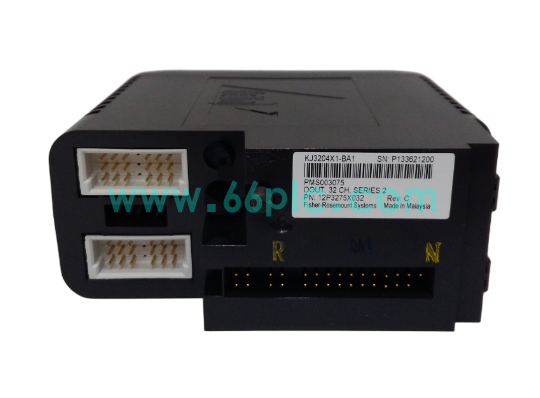

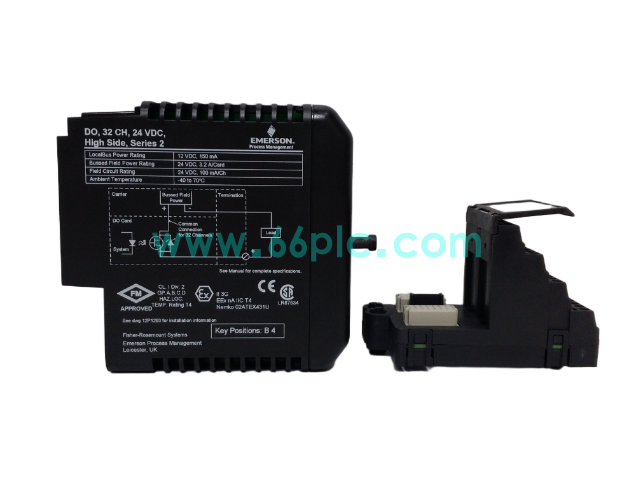

Emerson KJ3204X1‑BA1 12P3275X032 VE4002S1T2B5 Discrete Output Module with KJ4001X1‑CJ1 Terminal Block

The KJ3204X1‑BA1 (12P3275X032, VE4002S1T2B5) is a high‑density discrete output module for Emerson DeltaV DCS systems, paired with KJ4001X1‑CJ1 matching terminal block. It receives control logic commands from DeltaV controller and outputs 24VDC high‑side switching signals to drive field solenoid valves, relays and auxiliary actuators.

This compact series‑2 module supports channel‑level short‑circuit protection and comprehensive fault diagnostics. Combined with KJ4001X1‑CJ1 field terminal assembly, it provides reliable field‑wiring interface, suitable for long‑term continuous operation in petrochemical, power and chemical plant DCS control cabinets.

Main Specifications

• Brand: Emerson; Model: KJ3204X1‑BA1; Part No:12P3275X032, VE4002S1T2B5; Matching Terminal Block: KJ4001X1‑CJ1; Type: Discrete Output Module Assembly
• Applicable System: Emerson DeltaV distributed control system
• Core Tasks: 24VDC discrete control output, field device driving, channel fault monitoring, field signal wiring termination
• Signal Interface: 32‑channel 24VDC high‑side output, DeltaV LocalBus backplane interface, KJ4001X1‑CJ1 field wiring terminals
• Installation: Standard DeltaV rack‑mount plug‑in module with matching terminal block assembly
• Power Supply: LocalBus 12VDC, field bussed power 24VDC 3.2A maximum per card
• Operating Environment: ‑40℃ ~ +70℃, 5%‑95% RH non‑condensing, industrial anti‑vibration grade

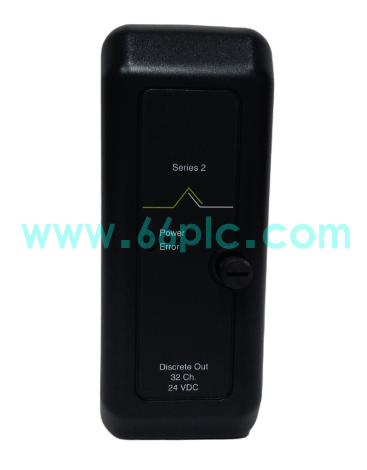

• Diagnostic: On‑board LED status indicators, per‑channel short‑circuit and fault alarm function
• Certifications: CE, complies with industrial process‑control EMC and safety standards

Core Functions

• Output high‑side 24VDC discrete switching signals to control field relays, solenoid valves and process‑plant actuators.
• Carry out per‑channel short‑circuit protection and over‑current limitation to safeguard both module and field‑side equipment.
• Communicate with DeltaV main controller via LocalBus backplane bus to receive logic commands and upload channel diagnostic status.
• KJ4001X1‑CJ1 terminal block provides robust field‑wiring termination, simplifying on‑site signal wiring and module replacement.
• Support output parameter configuration and channel fault diagnosis via DeltaV system configuration software.
• Industrial‑grade hardware design adapts to long‑term continuous operation in heavy‑duty process‑industry sites.

Application Scenarios

• Spare‑part replacement for DeltaV DCS control cabinets in petrochemical plants, power‑generation stations and chemical facilities.
• Field discrete output control assembly for process automation and interlock protection control systems.
• Maintenance backup inventory for renovation and after‑sales maintenance projects of legacy Emerson DeltaV DCS equipment.
• Matching output module assembly cooperating with DeltaV controller, power supply unit and system HMI operation panel.
• Retrofit replacement for old assemblies with channel output failure and hardware damage faults.

• Global aftermarket spare supply for automation maintenance teams maintaining Emerson DeltaV process‑control equipment worldwide.
