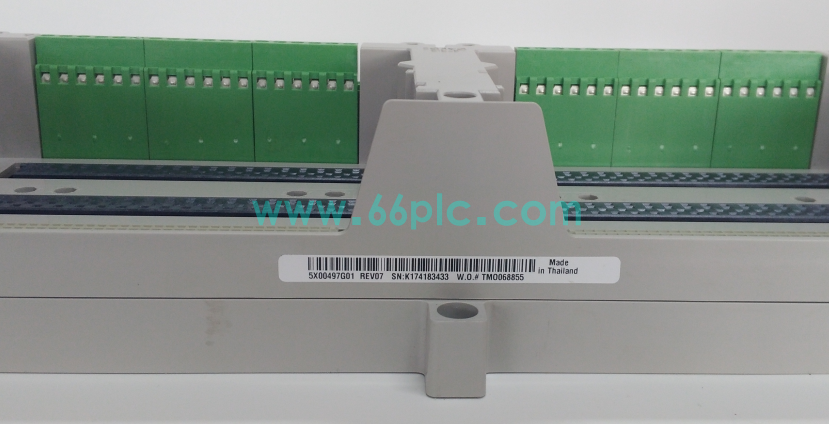

Emerson Ovation 5X00497G01 4-Slot I/O Base Terminal Baseplate

5X00497G01 is a 4-slot universal I/O terminal baseplate for Emerson Ovation DCS (inherited from Westinghouse). It serves as the physical carrier and signal wiring bridge for all standard Ovation plug-in I/O cards, providing backplane bus communication, 24VDC power distribution and field terminal wiring terminals for analog, digital, RTD and pulse modules.

This base adopts split green pluggable terminal blocks for convenient field wiring maintenance, supports hot-swap of all inserted I/O modules without powering down the rack, and is compatible with redundant power supply architecture. It is widely used as replacement spare part for thermal power, nuclear power and petrochemical DCS cabinet wiring reconstruction and daily maintenance projects.

Main Specifications

• Brand: Emerson (Westinghouse Ovation)
• Model: 5X00497G01
• Product Type: 4-Slot I/O Terminal Base Backplate
• Slot Capacity: Install up to 4 standard Ovation I/O modules simultaneously
• Power Input: 24VDC redundant power supply, max 10A total load
• Terminal Form: Detachable green spring terminal blocks for field signal wiring
• Core Compatibility: Matches RTD, AI/AO, DI/DO, pulse counting series I/O modules
• Environmental Index: Operating temperature -40℃ ~ +70℃, humidity 5%~95% non-condensing
• Shock & Vibration: Anti-vibration 5~500Hz, anti-shock 15g for power plant cabinet environment
• Key Feature: Support hot-swap I/O cards, backplane bus signal isolation
• Mounting: Standard DIN rail cabinet installation
• Application: Spare part replacement for energy industry DCS I/O wiring base hardware

Core Functions

• Carry 4 pieces of Ovation I/O modules and transmit high-speed backplane bus data between modules and DCS controller
• Distribute stable 24VDC power supply to each inserted I/O card, compatible with dual redundant power input
• Integrate detachable spring terminal blocks to connect field sensors, actuators and cabinet signal cables
• Realize electrical isolation between field circuit and internal control bus to suppress industrial electromagnetic interference
• Allow hot-swap of individual I/O modules without cutting off base power or interrupting other channel signals
• Modular split terminal design simplifies on-site wiring, troubleshooting and cable replacement work
• Standard rack-mounted mechanical structure realizes flexible combination expansion of multi-group I/O baseplates in control cabinet

Application Scenarios

• Thermal power plant boiler, turbine auxiliary system DCS signal acquisition cabinet layout projects
• Nuclear power plant reactor safety monitoring, auxiliary water and steam system I/O wiring supporting projects
• Petrochemical heating furnace, reactor and pipeline multi-point signal measurement cabinet construction
• On-site damaged I/O base replacement and daily wiring maintenance of Ovation DCS control system
• Old power plant DCS renovation project to expand analog/digital signal acquisition capacity
• Spare parts inventory backup of Westinghouse Ovation series I/O terminal baseplates for power stations
• Energy and chemical industry DCS field signal wiring hardware maintenance engineering projects
