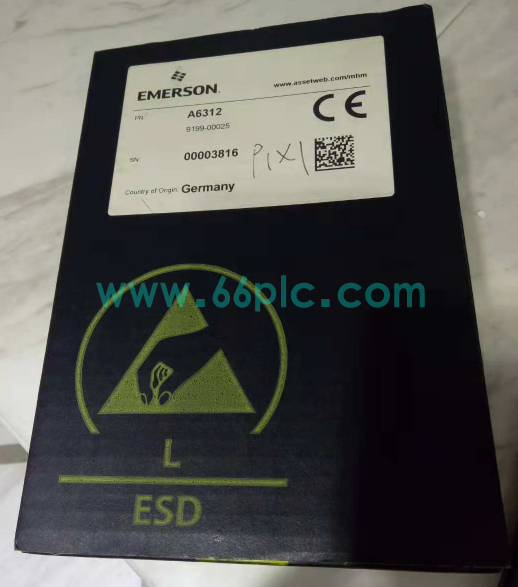

Emerson A6312 Dual-Channel Speed and Key Monitor Module

The Emerson A6312 is a single-slot dual-channel speed and keyphasor monitor designed for the AMS 6500 Machinery Health Monitoring system. It receives pulse signals from eddy current proximity sensors to continuously measure shaft rotating speed, rotation direction, zero-speed status and phase position of critical rotating equipment.

This module fully complies with API 670 machinery protection standards and supports hot-swappable operation without system shutdown. It provides 4~20mA analog outputs and buffered sensor signals, enabling seamless data transmission to DCS, PLC and predictive maintenance platforms, widely supplied as spare parts for rotating equipment protection system maintenance and upgrades.

Main Specifications

• Brand: Emerson (CSI Machinery Health)
• Model: A6312
• Product Type: Dual-Channel Speed & Keyphasor Monitor
• Compatible System: AMS 6500 Machinery Health Monitor Rack
• Input: Support eddy current proximity probe sensors
• Max measuring frequency: 20kHz, up to 65535 RPM
• Output: Dual-channel 4~20mA analog proportional signals
• Support redundant sensor automatic switching function
• Hot-swappable single slot 3U Eurocard rack installation
• Compliance: API 670 industrial machinery protection standard

Core Functions

• Continuously monitor rotational speed, key phase, zero speed and reverse rotation status of rotating shafts
• Set independent alarm thresholds to trigger interlock protection for overspeed and stall conditions
• Detect sensor open circuit, short circuit and abnormal gap voltage in real time for fault warning
• Redundant sensor mode realizes automatic switchover to improve monitoring system reliability
• Convert speed monitoring data into standard analog signals for upper control system acquisition
• Provide buffered sensor signal interface for on-site signal debugging and verification
• Support parameter configuration, online monitoring and fault diagnosis via AMS software
• Hot swap design reduces production downtime during module replacement and maintenance
• Built-in hardware self-test mechanism to ensure long-term stable unattended operation
• Fully matched with other AMS 6500 series vibration and position monitor modules

Application Scenarios

• Steam turbine, gas turbine speed protection and key phase monitoring systems
• Centrifugal compressor, reciprocating compressor machinery protection racks
• Thermal power plant auxiliary rotating equipment monitoring control cabinets
• Oil & gas processing station and pipeline pump monitoring units
• Petrochemical plant large rotating equipment predictive maintenance systems
• Hydraulic turbine, generator set shaft speed monitoring equipment
• Mining large fans, blowers and critical rotating machine protection systems
• Offshore platform rotating equipment safety monitoring and protection cabinets
• Renovation and expansion of legacy Emerson AMS 6500 monitoring platforms
• Rotating equipment monitor spare parts maintenance and emergency replacement projects
