Product Description

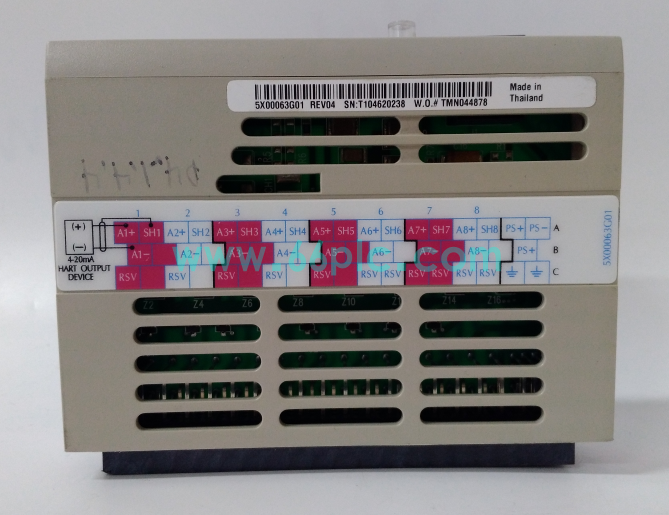

The Emerson 5X00063G01 is a high-performance 8-channel analog output module belonging to the Emerson Ovation distributed control system series. Serving as the core field analog signal output and closed-loop control execution unit for power generation and process automation platforms, it undertakes multi-channel standard analog signal output, precise process regulation, field actuator driving and system control command conversion tasks. It converts digital control logic from the main DCS system into standard analog signals to drive valves, regulators and frequency conversion equipment, providing accurate and stable closed-loop control support for thermal power, petrochemical and industrial energy process systems, ensuring continuous and reliable operation of automated production processes.

Adopting industrial high-stability DAC conversion architecture and high-precision signal calibration algorithm, this module features 8 independent configurable analog output channels, supporting universal 4–20mA current loop signal output applicable to most industrial field actuators. It achieves ultra-high output accuracy and excellent linearity with minimal signal drift, effectively guaranteeing the precision of process parameter regulation. Featuring hot-swappable modular design, it supports online replacement and maintenance without system shutdown, greatly reducing equipment downtime and maintenance costs. Built-in multi-stage surge suppression, overcurrent protection and signal isolation mechanisms effectively resist on-site electromagnetic interference and signal fluctuation in harsh industrial environments. Equipped with full-time channel status self-diagnosis and fault alarm functions, it enables real-time abnormality detection and rapid fault location. With wide-temperature rugged industrial structure, professional EMC anti-interference performance and long-term anti-aging design, it supports 24/7 uninterrupted stable control operation for mission-critical Ovation DCS systems.

Main Specifications

1. Full Part Number: 5X00063G01; Product Type: Ovation series 8-channel industrial high-precision analog output control module
2. Applicable System: Emerson Ovation DCS distributed control systems, power generation process control platforms and industrial automation systems
3. Core Function: Multi-channel analog signal output, digital-to-analog conversion, field actuator driving and process closed-loop regulation control
4. Channel Configuration: 8 fully independent configurable analog output channels for multi-point synchronous process control
5. Signal Standard: Supports standard 4–20mA industrial current loop output, compatible with mainstream field actuators and regulators
6. Conversion Performance: High-resolution DAC conversion design with excellent linearity and ultra-low long-term signal drift
7. Maintenance Feature: Industrial hot-swappable design, supporting online module replacement without system power-off and shutdown
8. Calibration Mechanism: Built-in precision automatic calibration function to ensure long-term consistent output accuracy
9. Diagnostic Mechanism: Full-time channel working status monitoring, output abnormality detection and module fault self-diagnosis alarm
10. Protection Mechanism: Integrated overcurrent, overvoltage, short-circuit and surge multi-dimensional safety protection functions
11. Isolation Performance: Independent channel isolation design to avoid signal crosstalk and improve control stability
12. Anti-Interference Ability: Professional industrial EMC electromagnetic compatibility design, adapting to complex field electromagnetic interference environments
13. Environmental Performance: Wide operating temperature range (-40°C to +70°C), vibration-resistant, dust-proof and moisture-proof industrial structure
14. Structural Feature: Standard plug-in modular design, convenient for cabinet installation, wiring debugging and routine maintenance
15. Matching Performance: 100% original compatibility with Emerson Ovation system racks, main control units and supporting software
16. Reliability: Power industry high-availability certification, suitable for long-cycle uninterrupted process regulation and control tasks

Core Functions

1. Act as the core multi-channel analog output and process regulation unit for Emerson Ovation DCS control systems.
2. Realize high-precision digital-to-analog signal conversion to convert system control commands into standard field analog signals.
3. Complete 8-channel synchronous stable output to drive on-site valves, regulators and other process actuators for closed-loop control.
4. Support online hot-swap maintenance to improve system operational flexibility and reduce equipment outage losses.
5. Execute full-time signal status monitoring and multi-layer safety protection to avoid control abnormality and equipment failure.
6. Guarantee long-term high-precision, low-drift and uninterrupted process regulation operation for industrial power generation systems.

Application Scenarios

1. Thermal power plant Ovation DCS system process parameter regulation and field actuator control platforms
2. Power generation industry boiler, turbine and auxiliary equipment closed-loop automatic control scenarios
3. Petrochemical industrial process flow, pressure and temperature analog regulation control systems
4. Energy and industrial automation production line multi-point synchronous analog output and linkage control systems
5. Replacement and precision upgrading of aging analog output modules for Emerson Ovation DCS systems
