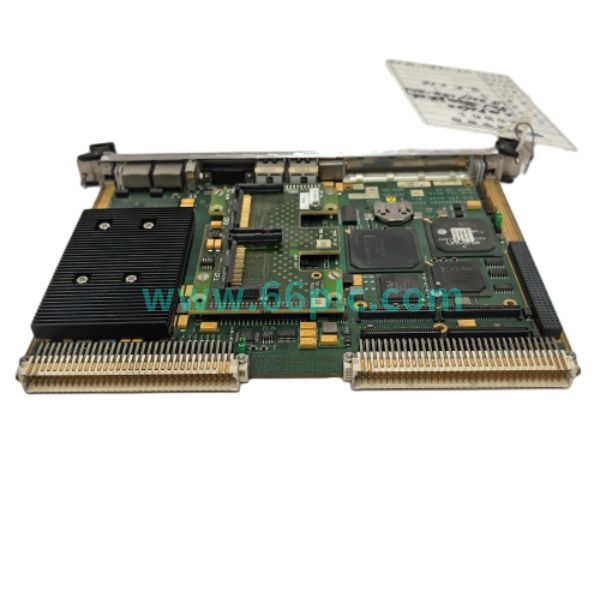

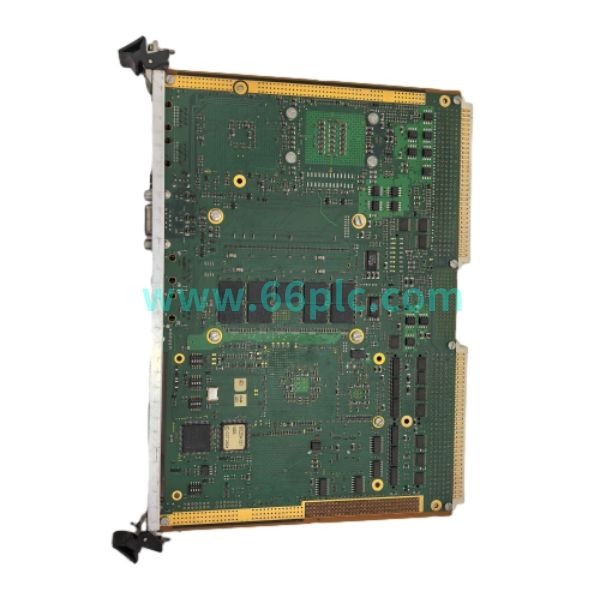

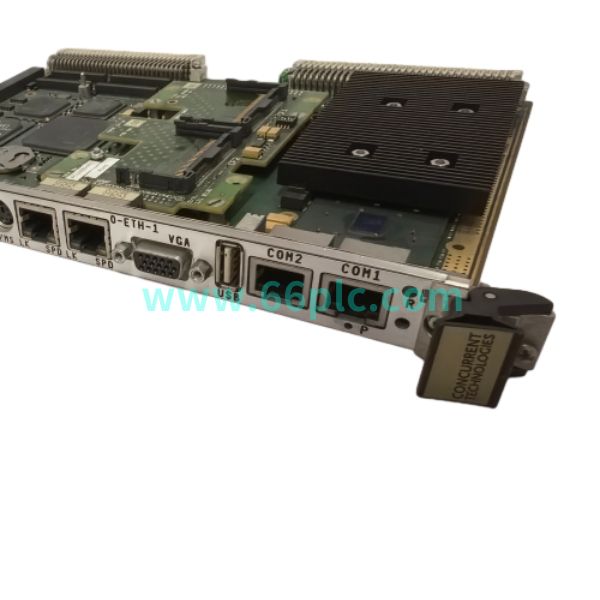

ALSTOM VP32502X是ALSPA控制系统单板处理器主板，替代标识PIB102A，采用VME总线架构，为阿尔斯通汽轮发电机组控制系统提供核心运算能力。板卡为插箱式背板安装，工业加固PCB设计，适配电站控制柜多粉尘、振动工况。

ALSTOM VP32502X is single board processor motherboard of ALSPA control system, also known as PIB102A. It is built on VME bus architecture and acts as the core computing unit for Alstom turbine and generator control systems. It is designed as plug-in board for backplane rack, with rugged industrial PCB construction to withstand dusty and vibrating environment in power control cabinets.

负责实时逻辑运算、模拟量采集、顺控联锁以及背板总线调度管理，完成转速调节、阀位控制、保护跳闸等关键控制算法。该型号早已停产，存量机组维修资源稀缺，是火电、水电汽轮机控制柜维修替换的重要备件。

It executes real-time logic, analog acquisition, sequence interlock and backplane bus management, running critical algorithms for speed regulation, valve position control and trip protection. This model has been discontinued for years and hard to source, serving as essential spare for maintenance of legacy thermal and hydro turbine control cabinets.

Main Specifications 技术参数

• 1. Product Series / 产品系列：ALSTOM ALSPA Control System

• 2. Part Numbers / 型号编码：VP32502X，PIB102A

• 3. Function Type / 类型：VME总线单板处理器主板

• 4. Key Features / 特性：VME rack mount, real-time processing, turbine governor & protection, obsolete spare

• 5. Mounting / 安装：VME插箱背板插槽安装

Core Functions 核心功能

• 1. 汽轮机转速闭环调节、阀门伺服控制，稳定机组运行负荷。
  Turbine speed closed-loop regulation and servo valve control to stabilize unit load.

• 2. 采集温度、压力、振动、转速信号，执行联锁逻辑与紧急跳闸保护。
  Collect temperature, pressure, vibration and speed signals, run interlock logic and emergency trip protection.

• 3. VME背板总线管理，和I/O板、通讯板交换高速实时数据。
  VME backplane bus management for high-speed data exchange with I/O and communication boards.

• 4. 事件记录、故障状态存储，支持本地调试和上位监控对接。
  Event and fault logging, support local commissioning and communication with supervisory system.

• 5. 板载硬件自诊断，监测处理器、内存、总线链路状态，快速定位故障。
  On-board self-diagnosis for CPU, memory and bus links to accelerate fault location.

Application Scenarios 应用场景

• 1. 火电厂、水电站ALSPA汽轮机调速控制柜处理器板损坏停机更换维修。
  Processor board replacement for failed ALSPA turbine governor cabinets in thermal and hydro power plants.

• 2. 存量汽轮机组年度预防性检修，老化主控板预判更换，降低跳机风险。
  Preventive replacement during annual overhaul to reduce turbine trip risk caused by aging board.

• 3. ALSPA控制系统改造搬迁，原有程序配套同型号板卡替换兼容。
  ALSPA system relocation and retrofit, compatible replacement with existing control program.

• 4. 海外电站阿尔斯通汽机控制系统备件供货，配套程序调试与故障排查。
  Spare supply for overseas Alstom turbine control projects, with commissioning and troubleshooting support.

• 5. 电厂备品库储备，作为机组关键控制回路应急备件。
  Spare inventory for power plant storehouse as emergency part of critical turbine control loop.

FAQ 常见问答

Similar Models 相似型号

VP32501X

VP32503X

PIB101A

PIB103A

VME ALSPA I/O Board
