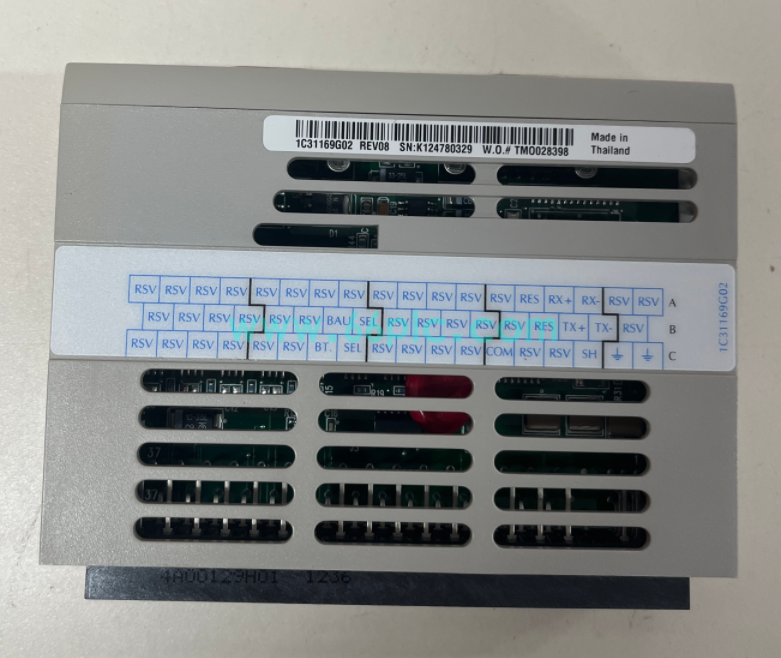

Emerson 1C31169G02 Serial Link Controller Module

The Emerson 1C31169G02 is a serial link controller module designed for Emerson Ovation DCS distributed control system, originally developed by Westinghouse. It provides multi-standard serial communication interfaces to realize data exchange between the Ovation system and third-party industrial field devices.

This module supports RS232, RS422 and RS485 communication standards and compatible with Modbus protocol. It is equipped with channel status indicators and built-in communication diagnosis function. Widely used for DCS cabinet renovation, equipment maintenance and spare parts supply in thermal power, petrochemical and water treatment industries.

Main Specifications

• Brand: Emerson (Westinghouse Ovation series)
• Model: 1C31169G02 Serial Link Controller Module
• Applicable System: Emerson Ovation DCS Distributed Control System
• Communication Interfaces: RS232, RS422, RS485 dual serial ports
• Supported Protocol: Modbus RTU and standard serial communication protocol
• Baud Rate Range: Up to 115.2 kbps configurable via software
• Power Supply: Powered by rack internal backplane bus
• Indicator: LED status lights for each communication channel
• Operating Temperature: -20℃ ~ +60℃
• Installation: Standard single-slot rack plug-in module

Core Functions

• Act as communication gateway connecting Ovation DCS and external serial devices
• Realize bidirectional data transmission between controllers and third-party instruments
• Support long-distance field communication based on RS422/RS485 bus
• Convert internal rack bus data into standard serial protocol data frames
• Continuous communication diagnosis detects link disconnection and signal anomalies
• Flexible communication parameter configuration through engineering workstation
• Upload communication fault alarms and module running status to operator station
• Isolation design suppresses electromagnetic interference in industrial sites
• Support multi-point serial bus networking for multiple field equipment access
• Stable continuous operation for long-cycle industrial process control occasions

Application Scenarios

• Thermal power plant boiler and turbine Ovation DCS control systems
• Combined cycle power plant gas turbine unit automation control cabinets
• Waste heat power generation plant distributed process monitoring platforms
• Petrochemical plant instrument and frequency converter data communication occasions
• Water treatment plant remote terminal equipment data acquisition systems
• Industrial self-owned power plant auxiliary equipment monitoring control racks
• Old automation system upgrade and serial communication expansion projects
• Energy pipeline station instrument signal interconnection control systems
• Emerson Ovation DCS system overhaul, upgrading and spare parts replacement
• All industrial sites requiring serial communication expansion for DCS platforms
